Master tenant has the ability to view reports from all tenants.

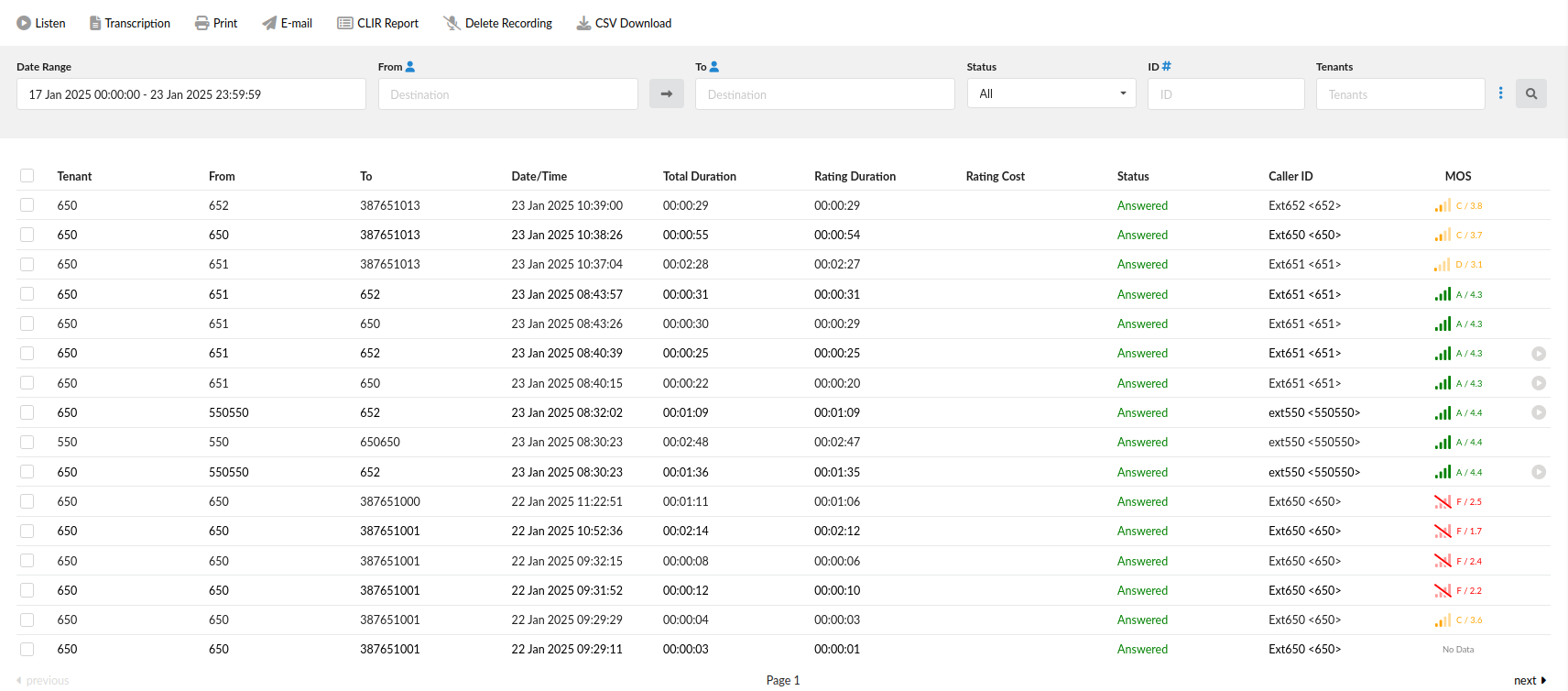

CDR displays detailed records of all PBXware MT calls with the following details:
Tenant on which the call happened.
(E.g. If call was made on tenant with prefix 300, 300 will be shown here).
Extension number from which the call was made
(E.g. If call was made from extension 1001 to extension 1004, '1001' is displayed here).
NOTE: Users can now search anonymous calls simply by entering 'anonymous' in the From field and then the query will display anonymous results only.
Extension number to which the call was made
(E.g. If call was made from extension 1001 to extension 1004, '1004' is displayed here).
Date and Time when the call was made
(E.g. 04 Oct 2006 10:44:10)
Call duration time in hh:mm:ss format
(E.g. 00:12:45)
Time billed by the system
(E.g. 00:12:45)
Cost of the call (E.g. 1.34)
Displays the call status
Example:
Depending on whether a call was answered or not, this field value may have the following content:
This column provides the information on Caller ID used on outbound calls. Although this information was already available in CLIR log files, we decided to expose it in the CDR reports page as well to make it more convenient for users when they need to find the Caller ID used on specific outbound call.
This icon is displayed once a call is recorded and 'Delete' or 'Listen' enhanced service is active
This is a box used with the CDR commands to select a desired call.
.
Users can download or listen to recordings offloaded to certain services using Archiving while on this page. Such recordings are similar to regular call recordings but the ones that are offloaded cannot be deleted.
If such an entry is selected and 'Delete Recording' is clicked, the following warning message will appear: "Recording not available for selected record." Please refer to the screenshot.
Based on which case scenario it is, one of the two icons will be displayed:
The system displays different icons depending on which service was used.
The list is as follows:
NOTE: If there is no recording on the system, no icon will be displayed.
NOTE: For this feature to work properly, a user needs to update the license. Please note that if this feature is not enabled in the license, the icons will be displayed but recordings cannot be downloaded or listened to.
Select a Search/Filter start date
(E.g. Click on the small 'Calendar' icon next to a field and select the desired date)
Select whether you want to search the CDRs by Destination(s) or by Trunk from which the call came in.
(E.g. Destination(s) or Trunks)
This field points to the Destination(s) or Trunk for which you are searching
(E.g. Trunk)
Search calls by selecting the desired call status.
Example:
Click on the 'Please Select' button and select one of the available fields:
.
CDRs can now be filtered by 2 different types of IDs. First is Unique ID, and by filtering with this one you get the same functionality as before (set by default).
By clicking the blue "#" sign right to the "ID" label you change the type of ID to Linked ID. Filtering CDRs with this type of ID will get you all CDRs that are "linked" to the selected one and you will be able a call flow where the selected CDR is included.
(E.g. 1221447123.66)
Search calls by selecting the desired Tenant.
Additional search options:
Users can choose to have only those calls with a cost displayed in the report. If this option is not selected, then the report will feature ALL calls.
(Toggle button ON/OFF)
NOTE: The above feature is also available in Online Self Care portal.
Clicking on the “Show recorded calls only” toggle button will only include CDRs with the call recordings attached in the search results.
(Toggle button ON/OFF)
TIP: After making any changes to the search filter make sure to click the search icon to refresh search results.
Once the 'Listen' icon is displayed next to a call record it means that the specific call was recorded.
(E.g. To play recorded calls, check the box next to a 'Listen' icon and click 'Listen'. Browser will prompt you to open the sound file in your favorite audio player or to download the sound file).
.
To establish a call between two extensions, all you need to provide is the caller $EXTENSION number and the $DESTINATION extension
Extension that will make a call
Example:
Provide any extension number here, 1001, for example
Destination extension that will be dialed by the 'Caller' extension
(E.g. To select a destination extension, first check the box next to a CDR record. This field will display two extensions listed under 'From' and 'Destination' selected record)
TIP: After setting 'Caller' and 'Destination' extensions, click the call icon
Check the box next to a call record and click the 'Print' button. This action will open a new pop-up window with the printing interface.
.
Click on the 'Email' button to send all reports listed on a page or select a box next to a report and click the 'Email' button to send only selected ones
Provide an E-mail address where the report is to be sent and click on the 'OK' button to proceed or 'Cancel' to abort the email action
Press 'OK' to email all CDR records on the current page (even if they are not selected) or click 'Cancel' to print selected records only
Finally, press the 'OK' button to confirm an email action or 'Cancel' to abort the email action
.
CLIR (Command Line Interface Record) details
Example:
Select a desired call record and click this button to view more technical details about the call. A small popup window will open with the data.
.
NOTE: When experiencing any kind of unexplained problems, this is the data you need to send to the technical support team
CLIR report has been improved to show when the channels limit defined in the license is exceeded, the CLIR will show the exact numbers ( current > max ).
This option enables you to send the current CLIR to desired e-mail address
.
Deletes the recorded calls.
NOTE: For this command to be displayed, the appropriate enhanced service has to be set.
(E.g. Select a recorded call and click this button to delete it from the file system)
Download data as a .csv (Comma Separated Value) file
(E.g. Click this button to download the .csv file to your desktop)
.
Create a CDR summary report for a selected period of time.
Select a Search/Filter start date
(E.g. Click on the small 'Calendar' icon next to a field and select the desired date)
Group results by selecting the desired period.
Example:
Click on the field and select one of the available options:
.
Filter results per tenant number.
(E.g. 200)
SFilter results per accountcode.
(E.g. 101)
.

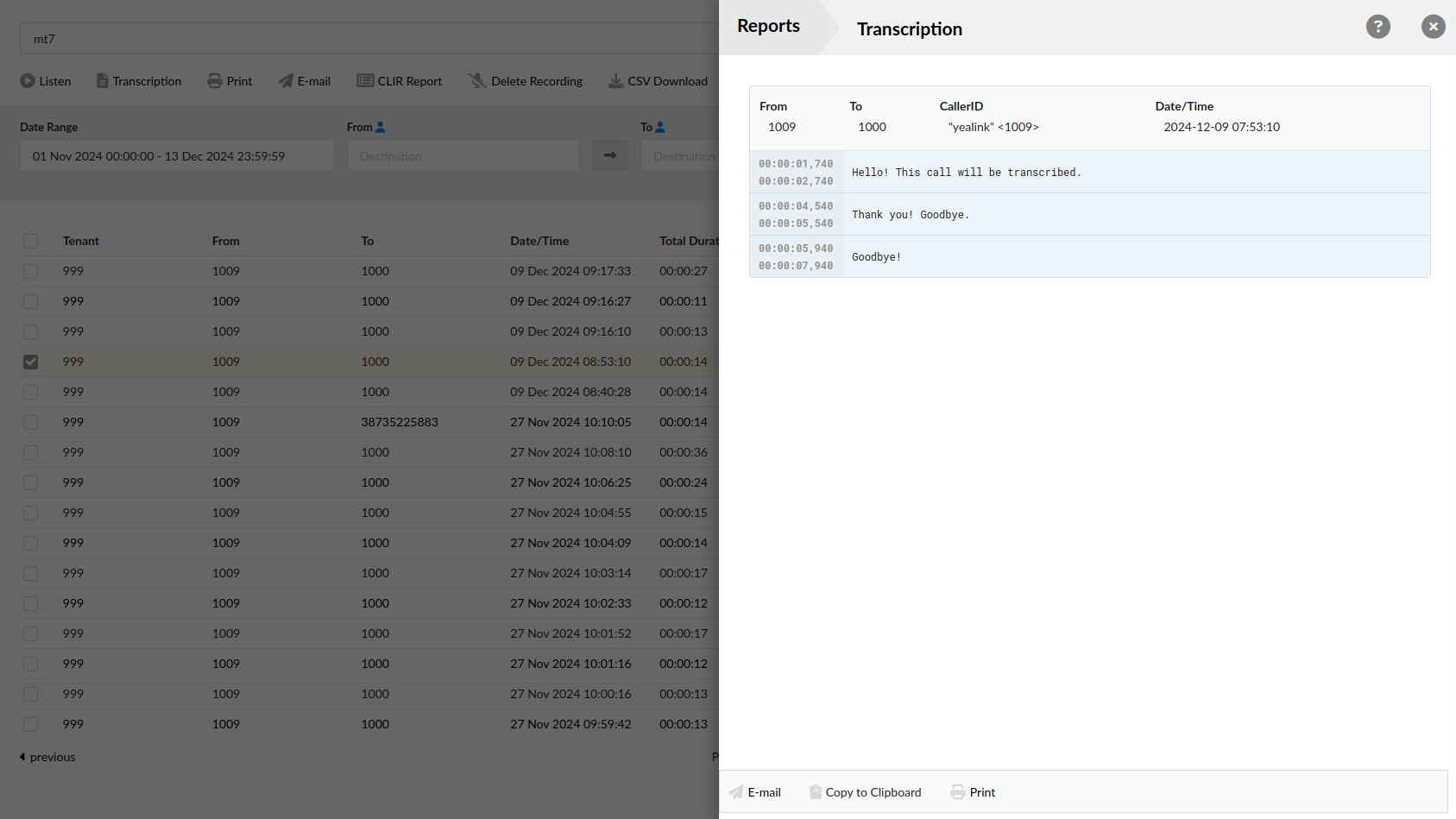

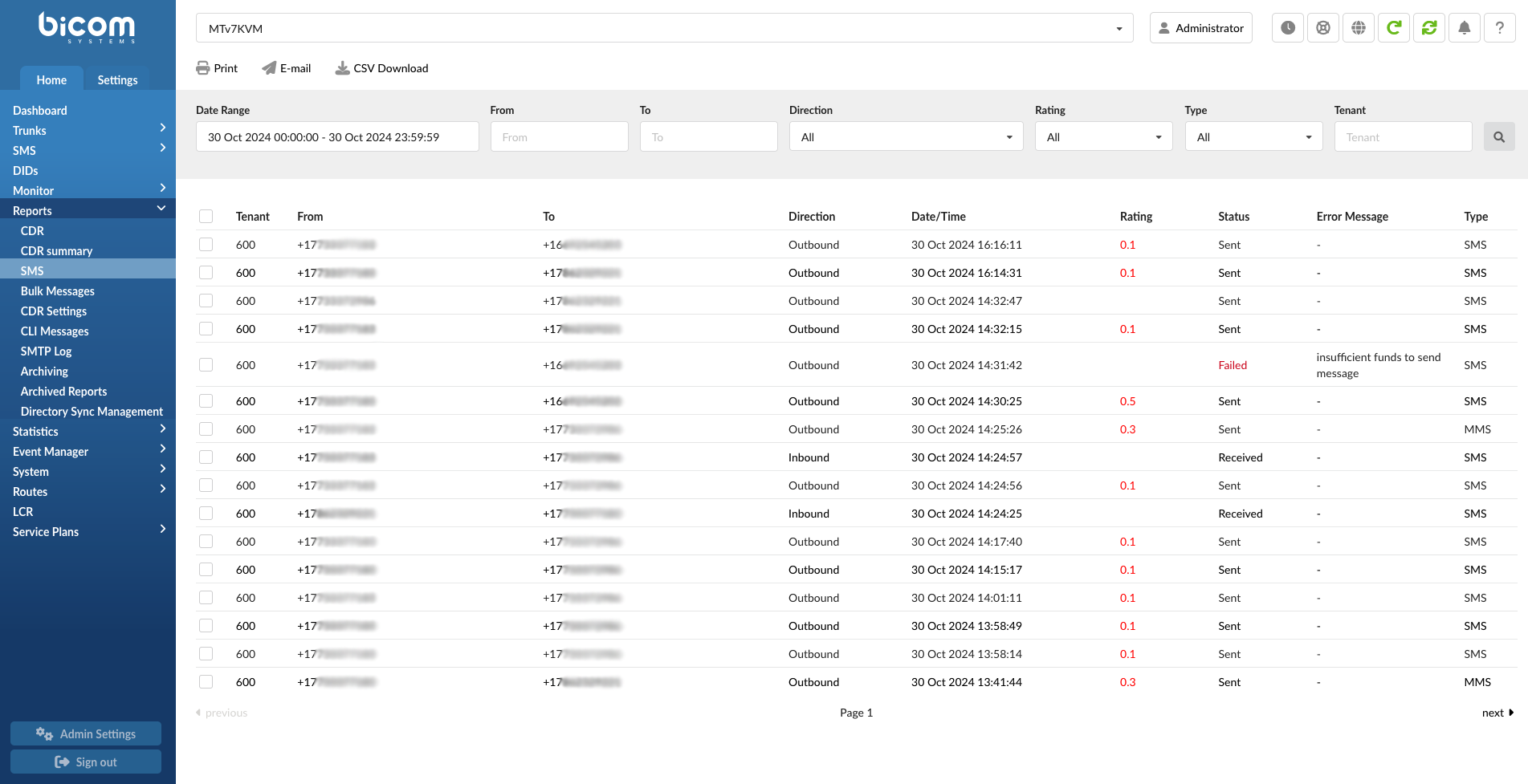

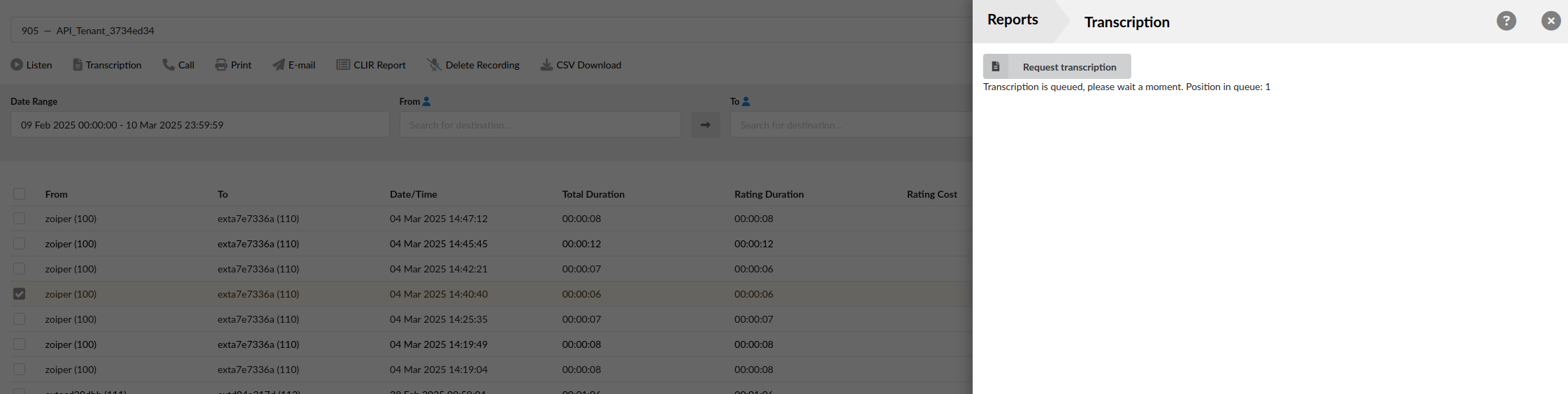

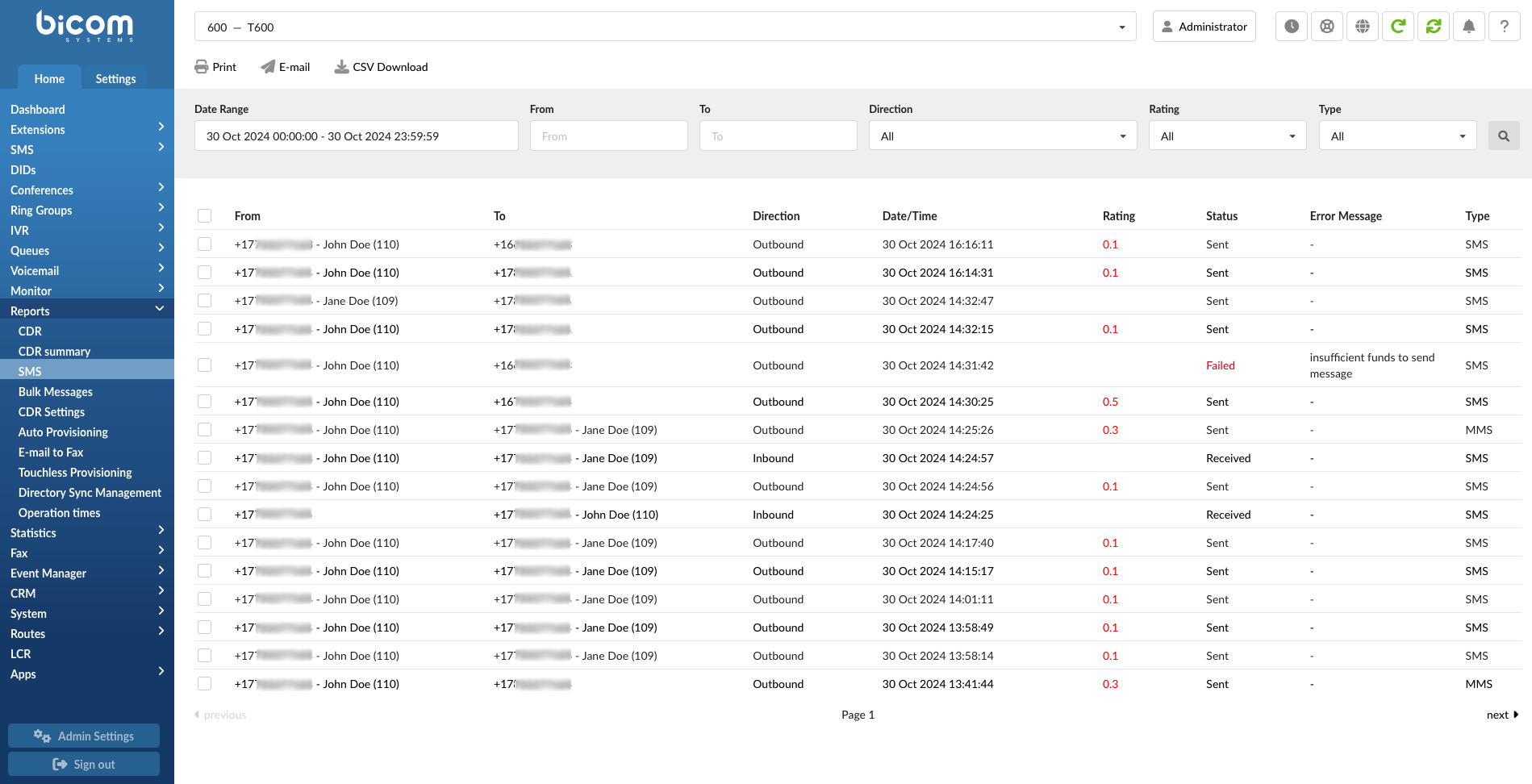

This 'SMS' section on Reports allows users to see all details regarding SMS messages on the system.
Click to print selected entries.
NOTE: After users select which entries they want to print, they will be prompted to a different window and complete the configuration based on the printer they have.
Click to send selected entries in an e-mail.
NOTE: In order to successfully send an e-mail, please make sure that some/all entries are ticked. If not, a warning message will appear saying "No results found." Please refer to the screenshot.
Click this button to download a CSV file.
NOTE: This CSV file contains the data displayed on the 'SMS' page. Users can choose to download specific entries or select all of them.
Select a Search/Filter start date
(E.g. Click the small 'Calendar' icon next to a field and select the desired date.)
Enter a number from which the SMS message was sent and have the data filtered accordingly
(E.g. +1234567890)
Enter a number to which the SMS was sent and have the data filtered accordingly
(E.g. +2221564879)
Select one of the directions and have the data filtered accordingly
(E.g. All/Inbound/Outbound)
Enter a Tenant Code and have the data filtered accordingly
(E.g. 200)
Select an entry by ticking this check box
Displays the Tenant Code
(E.g. 200)
Displays the number from which the SMS message was sent
(E.g. +1234567890)
Displays the number to which the SMS was sent
(E.g. +2221564879)
Displays the SMS message direction
(E.g. Inbound)
Displays the date and time of the SMS message
(E.g. 30 Nov 2020 09:03:44)
Displays the SMS message status
(E.g. Sent/Received/Failed)
Displays the message explaining why certain action failed
(E.g. Provider: Authentication failed)
.
This 'Bulk Messages' section on Reports allows users to see all details regarding Bulk messages on the system.
Click to print selected entries.
NOTE: After users select which entries they want to print, they will be prompted to a different window and complete the configuration based on the printer they have.
Click to send selected entries in an e-mail.
Click this button to download a CSV file.
NOTE: This CSV file contains the data displayed on the 'Bulk Messages' page. Users can choose to download specific entries or select all of them.
Select a Search/Filter start date
(E.g. Click the small 'Calendar' icon next to a field and select the desired date.)
Select one of the statuses and have the data filtered accordingly
(E.g. Not Active)
Populate the field with a name and have the data filtered accordingly
(E.g. TestBulk)
Enter a Tenant Code and have the data filtered accordingly
(E.g. 200)
Select an entry by ticking this check box
Displays the Tenant Code
(E.g. 200)
Displays the name of a Bulk message
(E.g. TestBulk)
NOTE: Clicking the name of a certain Bulk message will prompt users to the Reports page where they can access more data and information on this Bulk message.
Displays the number of sent messages and the total amount of numbers that the message was sent to
(E.g. 2/2)
Displays the starting date and time of the Bulk message
(E.g. 17 Aug 2021 13:17:21)
Displays the ending date and time of the Bulk message
(E.g. 17 Aug 2021 13:18:02)
Displays the number/alphanumeric from which the Bulk message was sent
(E.g. +1234567890)
Displays the name of the CSV file
(E.g. CampaignBulk)
NOTE: Clicking the name of a certain CSV file will prompt users to the Reports page where they can access more data and information on this Bulk message.
Displays the Bulk message's status
(E.g. Completed)
Displays the content of the message
(E.g. "This is just a test.")
Displays details about the SMS report
NOTE: Clicking an SMS report icon will prompt users to another page where they can access more data and information on this Bulk message.
Please provide a number in the 'Records per page' field
Number of records displayed per page
(E.g. When on the 'Reports: CDR' page, and this option is set to '16', the last 16 call records will be displayed. On the bottom there is a 'Page' field. Type a page number, e.g. '2', and click the 'GO' button to display the next 16 call records)
.
CLI messages provide a convenient method of showing messages received from the asterisk CLI (Command Line Interface). Each message is shown in the order received and, if clicked on, will open a new browser searching www.google.com with the message content text.
Available Message types:
This page will allow you to see eventual errors in regards to PBXware e-mail messages and notifications.
Archiving automatically copies eligible files to a remote destination on a weekly basis.
Users can store data on one of the following services:
Search data by selecting a specific date range and clicking the 'Search Now' button
(E.g. Last 30 Days)
Search data by selecting one of the statuses displayed in the drop-down list
(E.g. All/Success/Partial Success/Failed)
Search data by entering a specific Tenant
(E.g. 100)
Displays the Tenant number
(E.g. Tenant 100)
Displays the date and time of an upload
(E.g. 01 Jul 2021 16:40:02)
Displays the status of an upload
(E.g. Success)
Displays the number of recordings
(E.g. 3)
Displays the number of voicemails
(E.g. 0)
Displays the number of faxes
(E.g. 2)
Displays the number of chat logs successfully uploaded in the archiving session.
Displays the number of CDR logs successfully uploaded in the archiving session.
.
On new installations, CDR will be partitioned automatically. We will keep up to 1 year of data by default, but customers will have the option to change this period in the 'File System' section, if necessary.
The 'Archived Reports' page allows users to see the logs and how the partitioning process went.
Select a Search/Filter start date
(E.g. Click the small 'Calendar' icon next to a field and select the desired date.)
(E.g. CDR)
Displays the date of partition
(E.g. Dec 2020)
Displays the database table
(E.g. CDR)
Displays the size of a file after archiving
(E.g. 42 bytes)
Download the archived partition as a file
(Button)
NOTE: The file is downloaded as a .tsv file.
Select a Search/Filter start date
(E.g. Click the small 'Calendar' icon next to a field and select the desired date.)
Select the Tenant for which you would like to see more information
(E.g. 750 - Test)
Select one of the three Actions and have data displayed for that particular 'Action'
.
Select one of the two Statuses and have data displayed for that particular 'Status'
.
Search data by 'E-mail', 'Extension Number', or 'Extension Name' and have it displayed accordingly.
Displays the Date of syncing
(E.g. 14 July 2020 16:09:20)
Displays the name of the synced Extension
(E.g. ebranthwaiteng@windomain.local)
Displays the Extension Number
(E.g. 103)
Displays the Extension Name
(E.g. Emmott Branthwaite)
Displays data based on the selected 'Action'
(E.g. Add)
Displays data based on the selected 'Status'
(E.g. Success)
Displays the message explaining why certain sync failed
NOTE: If the Status of the sync is 'Error', the 'Message' section will provide users with further information on why certain sync failed.
Displays additional information regarding the synced Extension
NOTE: In order to see the data, a user has to hover his/her mouse over the icon.
Slave tenants can view CDRs of the calls that were made on them and can't view the CDRs from the other tenants.
CDR displays detailed records of all calls on the current tenant with the following details:
Extension number from which the call was made.
(E.g. If the call was made from extension 1001 to extension 1004, '1001' is displayed here).
NOTE: Users can now search anonymous calls simply by entering 'anonymous' in the From field and then the query will display anonymous results only.
Extension number to which the call was made.
(E.g. If call was made from extension 1001 to extension 1004, '1004' is displayed here).
Date and Time when the call was made
(E.g. 04 Oct 2006 10:44:10)
Call duration time in hh:mm:ss format.
(E.g. 00:12:45)
Time billed by the system.
(E.g. 00:12:45)
Cost of the call (E.g. 1.34)
Displays the call status.
Example:
Depending on whether a call was answered or not, this field value may have the following content:
This column provides the information on Caller ID used on outbound calls. Although this information was already available in CLIR log files, we decided to expose it in the CDR reports page as well to make it more convenient for users when they need to find the Caller ID used on specific outbound call.
.
This icon is displayed once a call is recorded and 'Delete' or 'Listen' enhanced service is active.
This checkbox used in combination with the CDR commands to select a desired call
.
Users can download or listen to recordings offloaded to certain services using Archiving while on this page. Such recordings are similar to regular call recordings but the ones that are offloaded cannot be deleted.
If such an entry is selected and 'Delete Recording' is clicked, the following warning message will appear: "Recording not available for selected record." Please refer to the screenshot.
Based on which case scenario it is, one of the two icons will be displayed:
The system displays different icons depending on which service was used.
The list is as follows:
NOTE: If there is no recording on the system, no icon will be displayed.
NOTE: For this feature to work properly, a user needs to update the license. Please note that if this feature is not enabled in the license, the icons will be displayed but recordings cannot be downloaded or listened to.
Select a Search/Filter start date.
(E.g. Click on the small 'Calendar' icon next to a field and select desired date)
Select a Search/Filter end date.
(E.g. Click on the small 'Calendar' icon next to a field and select the desired date)
Select whether you want to search CDRs by Destination(s) or Trunk from where the call got in.
(E.g. Destination(s) or Trunks)
This field points to a Destination(s) or Trunk for which you are searching.
(E.g. Trunk)
CDRs can now be filtered by 2 different types of IDs. First is Unique ID, and by filtering with this one you get the same functionality as before (set by default).
By clicking the blue "#" sign right to the "ID" label you change the type of ID to Linked ID. Filtering CDRs with this type of ID will get you all CDRs that are "linked" to the selected one and you will be able a call flow where the selected CDR is included.
(E.g. 1221447123.66)
When searching for CDRs this is the start time on the Start Date.
(E.g. Time in hh:mm:ss format like 10:15:30)
When searching for CDRs this is the end time on the End Date,
(E.g. Time in hh:mm:ss format like 15:20:30)
If you chose Destination(s) in the From Select box, you will enter the extension from which the call came. If your selection was Trunk, you will have a Select box in this place where you can choose a trunk on the system from which the call came.
Example:
.
Here you will enter number of the destination or select a trunk in which the call ended up.
(E.g. 1007)
Search calls by selecting desired call status.
Example:
Click on a 'Please Select' button and select one of the available fields:
Additional search options:
Users can choose to have only those calls with a cost displayed in the report. If this option is not selected, then the report will feature ALL calls.
NOTE: This feature can also be used in Online Self Care.
TIP: After making any changes to the search filter, be sure to click the search icon.
Once the 'Listen' icon is displayed next to a call record it means that the specific call was recorded.
(E.g. To play recorded calls, check the box next to a 'Listen' icon and click 'Listen'. Browser will prompt you to open the sound file in your favorite audio player or to download the sound file).
To establish a call between two extensions, all you need to provide is the caller $EXTENSION number and the $DESTINATION extension.
Extension that will make a call.
Example:
Provide any extension number here, 1001, for example
Destination extension that will be dialed by the 'Caller' extension.
(E.g. To select a destination extension, first check the box next to a CDR record. This field will display two extensions listed under 'From' and 'Destination' selected record)
TIP: After setting 'Caller' and 'Destination' extensions, click the call icon.
Check the box next to a call record and click the 'Print' button. This action will open a new pop-up window with the printing interface.
.
Click on the 'Email' button to send all reports listed on a page or select a box next to a report and click the 'Email' button to send only selected ones
Provide an E-mail address where the report is to be sent and click on the 'OK' button to proceed or 'Cancel' to abort the email action
Press 'OK' to email all CDR records on the current page (even if they are not selected) or click 'Cancel' to print selected records only
Finally, press the 'OK' button to confirm an email action or 'Cancel' to abort the email action
.
CLIR (Command Line Interface Record) details
Example:
Select a desired call record and click this button to view more technical details about the call. A small popup window will open with the data.
.
NOTE: When experiencing any kind of unexplained problems, this is the data you need to send to the technical support team
CLIR report has been improved to show when the channels limit defined in the license is exceeded, the CLIR will show the exact numbers ( current > max ).
E-mail CLIR page option enables you to send the current CLIR to desired e-mail address
Deletes recorded calls.
NOTE: For this command to be displayed, the appropriate enhanced service has to be set.
(E.g. Select a recorded call and click this button to delete it from the file system)
Download data as a .csv (Comma Separated Value) file.
(E.g. Click this button to download the .csv file to your desktop)
.
Create a CDR summary report for a selected period of time.
Select a Search/Filter start date
(E.g. Click on the small 'Calendar' icon next to a field and select the desired date)
Group results by selecting the desired period.
Example:
Click on the field and select one of the available options:
SFilter results per accountcode.
(E.g. 101)
This 'SMS' section on Reports allows users to see all details regarding SMS messages on the system.
Click to print selected entries.
NOTE: After users select which entries they want to print, they will be prompted to a different window and complete the configuration based on the printer they have.
Click to send selected entries in an e-mail.
NOTE: In order to successfully send an e-mail, please make sure that some/all entries are ticked. If not, a warning message will appear saying "No results found." Please refer to the screenshot.
Click this button to download a CSV file.
NOTE: This CSV file contains the data displayed on the 'SMS' page. Users can choose to download specific entries or select all of them.
Select a Search/Filter start date
(E.g. Click the small 'Calendar' icon next to a field and select the desired date.)
Enter a number from which the SMS message was sent and have the data filtered accordingly
(E.g. +1234567890)
Enter a number to which the SMS was sent and have the data filtered accordingly
(E.g. +2221564879)
Select one of the directions and have the data filtered accordingly
(E.g. All/Inbound/Outbound)
Select an entry by ticking this check box
Displays the number from which the SMS message was sent together with the Extension name/number
(E.g. +1234567890 - M 108 (108))
Displays the number to which the SMS was sent together with the Extension name/number
(E.g. +2221564879 - M 109 (109))
Displays the SMS message direction
(E.g. Inbound)
Displays the date and time of the SMS message
(E.g. 30 Nov 2020 09:03:44)
Displays the SMS message status
(E.g. Sent/Received/Failed)
Displays the message explaining why certain action failed
(E.g. Provider: Authentication failed)
This 'Bulk Messages' section on Reports allows users to see all details regarding Bulk messages on a Tenant.
Click to print selected entries.
NOTE: After users select which entries they want to print, they will be prompted to a different window and complete the configuration based on the printer they have.
Click to send selected entries in an e-mail.
Click this button to download a CSV file.
NOTE: This CSV file contains the data displayed on the 'Bulk Messages' page. Users can choose to download specific entries or select all of them.
Select a Search/Filter start date
(E.g. Click the small 'Calendar' icon next to a field and select the desired date.)
Select one of the statuses and have the data filtered accordingly
(E.g. Not Active)
Populate the field with a name and have the data filtered accordingly
(E.g. TestBulk)
Select an entry by ticking this check box
Displays the name of a Bulk message
(E.g. TestBulk)
NOTE: Clicking the name of a certain Bulk message will prompt users to the Reports page where they can access more data and information on this Bulk message.
Displays the number of sent messages and the total amount of numbers that the message was sent to
(E.g. 2/2)
Displays the starting date and time of the Bulk message
(E.g. 17 Aug 2021 13:17:21)
Displays the ending date and time of the Bulk message
(E.g. 17 Aug 2021 13:18:02)
Displays the number/alphanumeric from which the Bulk message was sent
(E.g. +1234567890)
Displays the name of the CSV file
(E.g. CampaignBulk)
NOTE: Clicking the name of a certain CSV file will prompt users to the Reports page where they can access more data and information on this Bulk message.
Displays the Bulk message's status
(E.g. Completed)
Displays the content of the message
(E.g. "This is just a test.")
Displays details about the SMS report
NOTE: Clicking an SMS report icon will prompt users to another page where they can access more data and information on this Bulk message.
Please provide a number in the 'Records per page' field.
Number of records displayed per page.
(E.g. When on the 'Reports: CDR' page, and this option is set to '16', the last 16 call records will be displayed. On the bottom there is a 'Page' field. Type a page number, e.g. '2', and click the 'GO' button to display the next 16 call records)
.
This page displays auto provisioning logs for those UADs which are being registered on the system.
The page will show 9 columns as follows:
The logs can be filtered by Tenant, Date, Protocol, Status and a search input which will try to match the UA, IP, MAC and URI.
.
Archiving automatically copies eligible files to a remote destination on a weekly basis.
Users can store data on one of the following services:
.
Search data by selecting a specific date range and clicking the 'Search Now' button
(E.g. Last 30 Days)
Search data by selecting one of the statuses displayed in the drop-down list
(E.g. All/Success/Partial Success/Failed)
Displays the date and time of an upload
(E.g. 01 Jul 2021 16:40:02)
Displays the status of an upload
(E.g. Success)
Displays the number of recordings
(E.g. 3)
Displays the number of voicemails
(E.g. 0)
Displays the number of faxes
(E.g. 2)
.
Each fax (sent or failed) will be logged. Here you can generate report and see details about each log.
Each log will show this information:
The reports can be filtered by Date, Tenant (only on master tenant), Status, Email From and Fax Number.
On this page there are three action buttons:
This page will contain last logs regarding ZTP.
Each log will show following information:
You can filter the logs by date, action, status or type in a search term which will be matched to a Mac address or a UAD. If the page is open on Master Tenant then the logs can be filtered by Tenant as well.
Select a Search/Filter start date
(E.g. Click the small 'Calendar' icon next to a field and select the desired date.)
Select one of the three Actions and have data displayed for that particular 'Action'
.
Select one of the three Statuses and have data displayed for that particular 'Status'
.
Search data by 'E-mail', 'Extension Number', or 'Extension Name' and have it displayed accordingly.
Displays the Date of syncing
(E.g. 14 July 2020 16:09:20)
Displays the name of the synced Extension
(E.g. ebranthwaiteng@windomain.local)
Displays the Extension Number
(E.g. 103)
Displays the Extension Name
(E.g. Emmott Branthwaite)
Displays data based on the selected 'Action'
(E.g. Add)
Displays data based on the selected 'Status'
(E.g. Success)
Displays the message explaining why certain sync failed
NOTE: If the Status of the sync is 'Error', the 'Message' section will provide users with further information on why certain sync failed.
Displays additional information regarding the synced Extension
NOTE: In order to see the data, a user has to hover his/her mouse over the icon.
